Exploring text-to-SQL

Is it possible to take text-to-SQL beyond a proof of concept, and create a robust product which is valuable to organizations?

Writing SQL is a time-consuming and iterative process even for a data analyst proficient in SQL. To assist them, many natural language → SQL solutions based on LLMs have been attempted in the last few years, but there is no clearly established best approach. Generating precise SQL that is faithful to user’s intent and a database’s structure is still an open problem.

One of the surveys¹ done on text-to-SQL explores more than a 100 papers on SQL generation and the different techniques used to improve the quality/accuracy of the sql generated. At nilenso, we are exploring such techniques, looking at their advantages, ease of application and relevance for real world usecases.

Baseline Approach: Zero shot prompting with question + DB schema

The very first approach one can take for SQL generation is to put the question and the database schema into the prompt and ask to generate SQL query. This approach has shortcomings like:

• Most orgs have quite a few tables and passing all their schema will bloat up the prompt and obscure relevant information. Hallucinations will happen when you start adding schema for >10 tables.
• Domain/Company specific information is not provided in this approach. Sometimes this information can come from data itself (eg. enums in a table etc), and is crucial to have to produce the right query.
• This doesn’t allow for any user input, iterations or validations. Complex SQL queries are best built iteratively, which allows for better understanding and more confidence. In this approach, we start from scratch every time.

Because of these, we continue experimenting with different approaches to improve SQL accuracy, while keeping this approach as the Baseline during evaluation.

In Context Learning

In-context learning is a technique where an LLM is given examples and instructions within the input prompt to guide its response. For this initial exploration, we focused on ICL with off-the-shelf models to translate natural-language queries to SQL, deliberately excluding fine-tuning. We also reduce our reliance on detailed table and column descriptions, recognizing that such metadata is often scarce in real-world scenarios.

We are currently exploring the following approaches for ICL.

• Retrieval Augmented Generation (RAG) Architecture: Preprocessing focused approach which creates and stores relevant information for future SQL generation as embeddings.
• Declarative agentic workflow: A predetermined workflow utilizing tools to interact with db, prompt engineering with the retrieved information to generate desired results.
• React agentic workflow: A iterative reasoning + action agentic workflow which decides what tool to use and how based on past context per iteration to get to the final answer.

There are common techniques we end up using across these approaches, like formatting a schema a certain way, breaking down queries etc.

Benchmarking

Bird-Bench is an extensive cross-domain database that contains over 12,751 unique question-SQL pairs spread over different domains and datasets, with ~1500 questions in its dev-set. For our experimentation, we have first focused on the 1500 questions in the dev-set.

A sample entry in the questions can look like:

  {
    "question_id": 163,
    "db_id": "financial",
    "question": "Which district has the most accounts with loan contracts finished with no problems?",
    "evidence": "status = 'A' refers to loan contracts finished with no problems",
    "SQL": "SELECT T1.A2 FROM District AS T1 INNER JOIN Account AS T2 ON T1.District_id = T2.District_id INNER JOIN Loan AS T3 ON T2.Account_id = T3.Account_id WHERE T3.status = 'A' GROUP BY T1.District_id ORDER BY COUNT(T2.Account_id) DESC LIMIT 1",
    "difficulty": "moderate"
  },

Bird bench has 95 different databases with questions spread across them. Every question map has the natural language question we would use as input, db_id to reference the relevant db, evidence (hint) which provides some domain knowledge about the question and db to generate the right conditions. The difficulty can be used to measure accuracy for different complexity levels of input questions. SQL is the query manually generated by data analysts and students, this is used as the reference query to evaluate an LLM generated query.

Structure of the loans table inside financial database:

Another example question:

  {
    "question_id": 239,
    "db_id": "toxicology",
    "question": "How many connections does the atom 19 have?",
    "evidence": "connections refers to bond_id; atom 19 refers to atom_id like 'TR%_19';",
    "SQL": "SELECT COUNT(T.bond_id) FROM connected AS T WHERE SUBSTR(T.atom_id, -2) = '19'",
    "difficulty": "simple"
  },

Bird-Bench dataset is very suitable for evaluating an application for robustness:

• Real, large databases across different domains with messy prod data, redundant columns etc.
• Varying levels of query difficulty, needing joins + nested + window + set ops and more.
• Dev set and Train set have different dbs, making sure overfitting is devalued.
• External domain knowledge is required (eg. understanding of school system, or finance data etc) where you can utilize the LLMs to the fullest.

We will use Bird-Bench to evaluate all our approaches as a benchmark to understand what techniques improve the solution and which dont. We will also be benchmarking on other datasets like Spider-SQL, which follows a very similar structure.

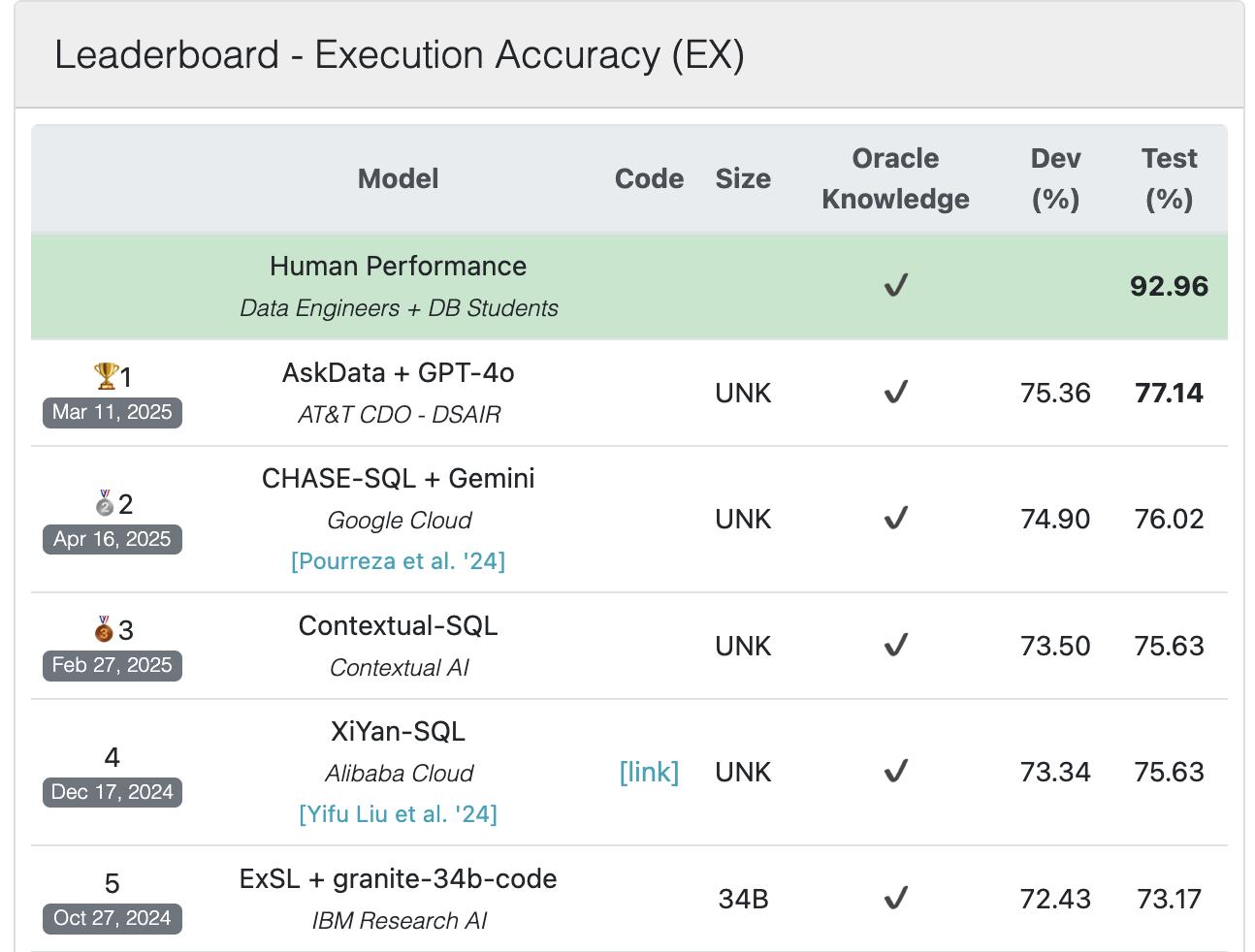

Leaderboard

This benchmark maintains a leaderboard which allows us to see what approaches work how well.

The top-10 approaches on this leaderboard all use a combination of SFT, RL, RAG and ICL with a majority of them relying on SFT. But Supervised Fine Tuning and Reinforcement Learning can make your frameworks less transferrable.

Evaluation:

The methods to evaluate the generated vs reference SQL are broadly divided into content matching (exact string or component matching), exeuction accuracy and LLM-as-judge based evaluation methods. Bird-bench focuses mainly on Execution Accuracy as well as VES(Valid Efficiency Score) which focuses on how efficiently the query executes.

We focus solely on Execution Accuracy, with a focus on factual accuracy for our experiments. We match the data generated by the two queries, but don’t fail evaluation in the following cases:

• The column names or order are different.
• If there are extra columns generated by the query as the additional information can be useful to the analyst
• Row order is important in some cases, not all

These evaluation metrics help us to focus on techniques which will be useful in the real world helping an analyst usecases.

We will be writing about our experiments with the different approaches, and our opinions and observations while implementing them in upcoming blogs.
